Slide Type Heavy Milling Cutters

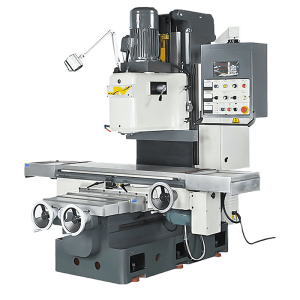

Millstar V500

Table Dimension: 1900×420 mm
X/Y/Z Axis Travel: 1300x500x600 mm
Cutting Length: 1300 mm
Cutting Width: 470 mm
Cutting Height: 500 mm
Loading Weight 1500 kg
Spindle Speed (60HZ): 1500-45 (18 steps) rpm

Millstar V520

Table Dimension: 1500×450 mm
X/Y/Z Axis Travel: 1100x520x500 mm
Cutting Length: 1100 mm
Cutting Width: 490 mm
Cutting Height: 500 mm
Loading Weight: 1000 kg
Spindle Speed (60HZ): 45-1500 (18 steps) rpm

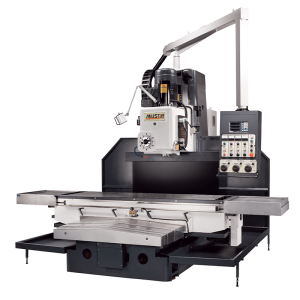

Millstar V650A

Table Dimension: 1900×500 mm
X/Y/Z Axis Travel: 1500x650x700 mm
Cutting Length: 1500 mm
Cutting Width: 650 mm
Cutting Height: 700 mm
Loading Weight 2000 kg
Spindle Speed (60HZ): 45-1500 (18 steps) rpm

Millstar V650B

Table Dimension: 2200×600 mm
X/Y/Z Axis Travel: 1700x650x700 mm
Cutting Length: 1700 mm
Cutting Width: 650 mm
Cutting Height: 700 mm
Loading Weight 2000 kg
Spindle Speed (60HZ): 45-1500 (18 steps) rpm

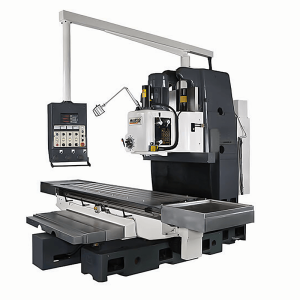

Millstar VH780

Table Dimension: 2600×700 mm
X/Y/Z Axis Travel: 2000x1050x1000 mm
Cutting Length 2000 mm
Cutting Width: 750 mm
Cutting Height: 750 mm
Loading Weight 3000 kg
Spindle Speed (60HZ): 45-1500 (18 steps) rpm
